◆ MZDB0746C, MZDB0746C-D, MZDB0746C-PL

◆ High quality coaxial illumination,high contrast, definition and large depth of field.

◆ In addition to match coaxial illumination, also can be equipped with LED ring illuminator

◆ Specially suitable to inspect & measure bottom of small deep holes, LCD, planar printed and other plane objects with high reflectivity & low reflectivity simultaneously.

Main advantages: It’s high contract and high definition are on same level compare to the other international similar products, but price is lower. It can observe almost objects such as LCD, chips, wafer and etc.. Especially fit for the high level research.


MZDA0745C	MZDA0745C

zoom range	0.7X~4.5X
Zoom radio	6.4: 1
WD	103mm
Illumination	Adjustable high brightness, long life LED adaxial illumination

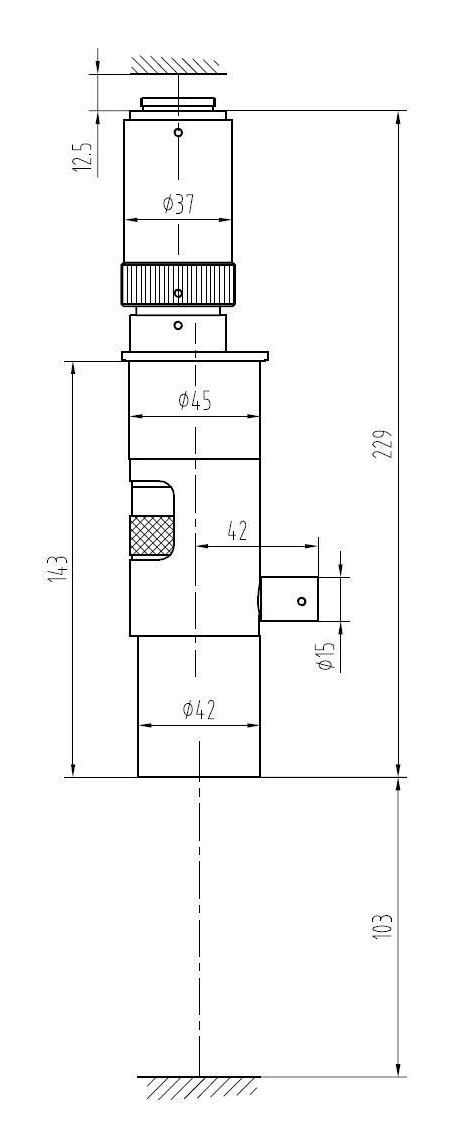

Holder and Main body matching dimension	Φ45mm
Mount	Standard CS-mount(distance between the bearing surface and the CCD plane is 12.5mm)

Auxiliary objective	Items	CCD adapter
Auxiliary objective	Items	0.4X	0.5X	0.67X	1X	1.5X	2X
1X Main bodyWD:103mm	Optical Mag.	0.28X～1.8X	0.35X～2.25X	0.469X～3X	0.7X～4.5X	1.05X～6.75X	1.4X～9X
1X Main bodyWD:103mm	FOV(mm)	12.9X17.1～2X2.67	10.29X13.71～1.6X2.13	7.7X10.2～1.2X1.6	5.14X6.86～0.8X1.07	3.43X4.57～0.53X0.71	2.57X3.43～0.4X0.53
0.7X WD:145mm	Optical Mag.	0.196X～1.26X	0.245X～1.575X	0.33X～2.11X	0.49X～3.15X	0.735X～4.725X	0.98X～6.3X
0.7X WD:145mm	FOV(mm)	18.4X24.5～2.9X3.8	14.69X19.59～2.29 X3.05	10.9X14.5～1.7X2.3	7.35X9.8～1.14X1.52	4.9X6.53～0.7X1.02	3.67X4.9～0.57X0.76
2X WD:35mm	Optical Mag.	0.56X～3.6X	0.7X～4.5X	0.938X～6X	1.4X～9X	2.1X～13.5X	2.8X～18X
2X WD:35mm	FOV(mm)	6.4X8.57～1X1.33	5.14X6.86～0.8X1.07	3.8X5.12～0.6X0.8	2.57X3.43～0.4X0.53	1.71X2.29～0.27X0.36	1.29X1.71～0.2X0.27
Main body zoom range 0.7X～4.5X

mag.	NA	DOF	Resolution	TV Distortion	Fixed Dim.：Φ45mm Max compatible camera：1/2" CCD screw mount： 1 inch 32 button
0.7X	0.027	2.1mm	12.4μm	0.03%
2.0X	0.062	0.32mm	5.4μm	0.08%
4.5X	0.087	0.10mm	3.9μm	0.13%

	CCD adapters	DH-C0.4, DH-C0.5, DH-C0.67, DH-C1.0, DH-C1.5, DH-C2.0
	Mechanical stages	S10086 ，S7665
	Auxiliary objectives	DA-W0.7、DA-W2.0
	Stands	SD1-D ~ SD18-D
