Guilin Microtech Optical Instrument Co., Ltd. (MTO)

Phone：+86-773-5823609

PRODUCT

Stands

There are more than 10 kinds of stands which are with or not with illuminations can be selected. The measurement to match between the support and the main body is φ45mm. The microscopes' standard outfits stand of with built-in coaxial illumination is SD11-D, of not with built-in coaxial illumination is SD1-D.

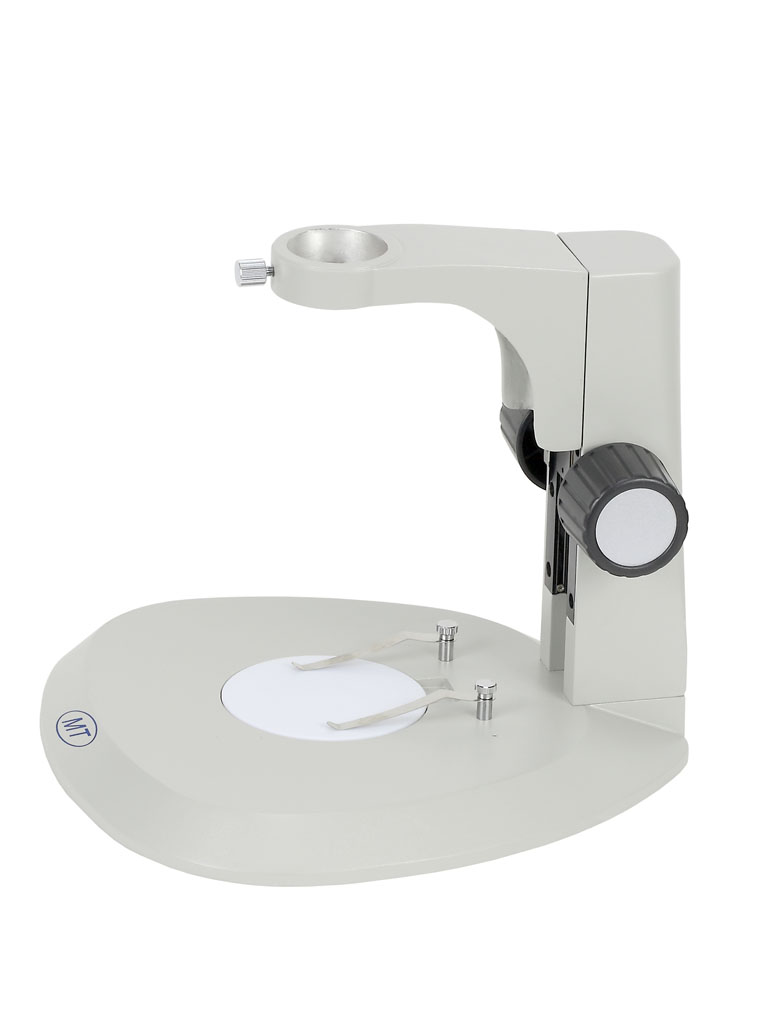

Model：SD1-D Stand

Introduction：
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm


Model：SD2-D Stand

Introduction：

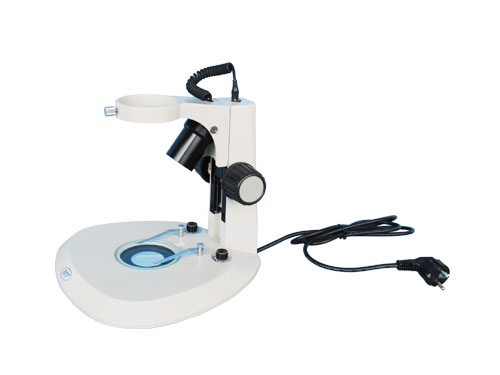

·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separable power line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD3-D Stand

Introduction：
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD4-D Stand

Introduction：
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The measurement to match between the support and the main body is Φ45mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.


Model：SD5-D Stand

Introduction：
·Not with illuminator, the diameter of the round post is Φ25mm, the height is 240mm
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm


Model：SD6-D Stand

Introduction：
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD7-D Stand

Introduction：
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD8-D Stand

Introduction：
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The measurement to match between the support and the main body is Φ45mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.


Model：SD9-D Stand

Introduction：
·Big soleplate of polymethyl methacrylate
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.


Model：SD10-D Stand

Introduction：
·Big black anticorrosive soleplate, the size is 400×300×20mm.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.



Model：SD11-D Stand

Introduction：
·Black painting steel soleplate. And SD11 is steady.
·It can fix S7650 mechanical stage directly.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm


Model：SD12-D Stand

Introduction：
·The special stand of coaxial illumination, the axes of the fixing main body hole and the stand woking stage is strictly vertical.
·The range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ45mm.


Model：SD1J-D Stand

Introduction：
·Glancing inching coaxial handwheel, can adjust the tension of glancing adjusting handwheel.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD2J-D Stand

Introduction：
·Glancing inching coaxial handwheel, can adjust the tension of glancing adjusting handwheel.
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separablepower line.
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD3J-D Stand

Introduction：
·Glancing inching coaxial handwheel, can adjust the tension of glancing adjusting handwheel.
·Not with illuminator, the range of the square post adjusting focus is 100mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm.


Model：SD4J-D Stand

Introduction：
·Glancing inching coaxial handwheel, can adjust the tension of glancing adjusting handwheel.
·In holder with adjusting angles and lighteness, 6V/10W, the reflected illumination of the halogen lamp.
·In Stand with 110V or 220V/5W the transmitted illumination of the fluorescent lamp.
·The up and down illuminators can use singly or simultaneity. Selected kinds of separable power line.
·The measurement to match between the support and the main body is Φ45mm.
·The range of the square post adjusting focus is 100mm.
·The diameter of the center working stage is Φ95mm.



Model：   SD17-D Round post sector Up and Down LED illumination Stands

Introduction：
·In holder with adjusting angles and lighteness, the reflected illumination of white LED.
·In stands with the transmitted illumination of white LED.
·The up and down illuminators can use singly or synchronously.
·The input voltage of wide range: AC90V~260V   47~63Hz
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm. Match with a black-white workbench and a transparent glass workbench



Model：  SD18-D Square post sector Up and Down LED illumination Stands

Introduction：
·In holder with adjusting angles and lighteness, the reflected illumination of white LED.
·In stands with the transmitted illumination of white LED.
·The up and down illuminators can use singly or synchronously.
·The input voltage of wide range: AC90V~260V   47~63Hz
·The range of the square post adjusting focus is 80mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm. Match with a black-white workbench and a transparent glass workbench.




Model：   SD17J-D Round post sector Up and Down LED illumination Stands(With fine adjustment)

Introduction：
·Glancing inching coaxial handwheel, can adjust the tension of glancing adjusting handwheel.
·In holder with adjusting angles and lighteness, the reflected illumination of white LED.
·In stands with the transmitted illumination of white LED.
·The up and down illuminators can use singly or synchronously.
·The input voltage of wide range: AC90V~260V   47~63Hz
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm. Match with a black-white workbench and a transparent glass workbench.



Model：  SD18J-D Square post sector Up and Down LED illumination Stands(With fine adjustment)

Introduction：
·Glancing inching coaxial handwheel, can adjust the tension of glancing adjusting handwheel.
·In holder with adjusting angles and lighteness, the reflected illumination of white LED.
·In stands with the transmitted illumination of white LED.
·The up and down illuminators can use singly or synchronously.
·The input voltage of wide range: AC90V~260V   47~63Hz
·The range of the square post adjusting focus is 80mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm. Match with a black-white workbench and a transparent glass workbench.



Model：   SD2/3W-D Round post sector Up and Down 3W LED illumination Stands

Introduction：
·In holder with adjusting angles and lighteness, the reflected illumination of white 3W LED.
·In stands with the transmitted illumination of white 3W LED.
·The up and down illuminators can use singly or synchronously.
·The input voltage of wide range: AC90V~260V   50/60Hz
·The diameter of the round post is Φ25mm, the height is 240mm.
·The range of holders adjusting focus is 50mm.
·The measurement to match between the support and the main body is Φ45mm.
·The diameter of the center working stage is Φ95mm. Match with a black-white workbench and a transparent glass workbench
